Overview
- Condition: New vehicle
- Manufacturer: Kawasaki
- Model: Ridge® XR HVAC
- Year: 2024
- Stock #: X00353
- Type: Sides-by-sides
Specifications
- Power: 86.5 kW* {118 PS*} / 8,500 rpm (*This vehicle’s engine output was measured according to ISO standard 4106.)
- Torque: 100 Nm {10.2 kgfm} / 8,000 rpm
- Engine: 999cc, liquid-cooled, 4-stroke, DOHC 4-valve-per-cylinder in-line four
- Bore x Stroke: 73.4 x 59.0 mm
- Compression Ratio: 10.6:1
- Fuel System: Fuel injection: ø52 mm x 1
- Ignition: Digital
- Starting: Electric
- Lubrication: Forced lubrication, wet sump
- Transmission: Dual-range (high/low) CVT with reverse
- Final Drive: 2WD/4WD, shaft, dual-mode front/rear differential
- Frame: Ladder type, tubular steel
- Front Suspension / Wheel Travel: Double wishbone / 323 mm (12.7 in)
- Rear Suspension / Wheel Travel: Double wishbone / 322 mm (12.7 in)
- Steering: Rack and pinion with Electric Power Steering
- Rake / Trail: 4.3° / -
- Steering Angle (L/R): 44° (IN) / 30° (OUT), 30° (OUT) / 44° (IN)
- Front Tires: 30 x 10.00R14 8PR
- Rear Tires: 30 x 10.00R14 8PR
- Front Brakes: Dual discs with two-piston calipers
- Rear Brakes: Dual discs with single-piston calipers
- Parking Brake: Dual discs (mechanical)
- Dimensions (LxWxH): 3,185 x 1,625 x 2,090 mm (125.4 x 64.0 x 82.3 in)
- Wheelbase: 2,305 mm (90.7 in)
- Road Clearance: 350/370 mm (standard/max preload) (13.8/14.6 in (standard/max preload))
- Seat Height: 960 mm (37.8 in)
- Curb Mass**: 937 kg (2,066 lb)
- Mass Without Fuel: 889 kg (1,960 lb)
- Fuel Capacity: 49 litres
- Tread (F/R): 1,360 mm (53.5 in) / 1, 360 mm (53.5 in)
- Turning Radius: 4.5 m (14.8 ft)
- Cargo Bed Dimensions (LxWxH): 880 x 1,245 x 325 mm (34.6 x 49.0 x 12.8 in)
- Cargo Bed Capacity: 453 kg (1,000 lb)
- Seating Capacity: 2
- Vehicle Load Capacity: 578* kg (1,274 lb) (*Max. permissible load figures for speeds up to 69 km/h. Above 69 km/h, max. permissible load is 195 kg (430 lb).)
- Towing Capacity: 907 kg (2,000 lb)
- Lighting: 2x LED headlights, 2x accent lights
- Instrumentation: 7” high-grade full-colour TFT LCD screen with speedometer, tachometer, fuel gauge, gear indicator (L, H, N, R), Driving Mode (2WD/4WD/4WD+Diff Lock), Power Mode (Work/Normal/Sport), clock, CVT temperature; selectable display that includes: digital tachometer, odometer, dual trip meters, total time, trip time, average speed, water temperature, battery voltage; Bluetooth indicator, Economical Riding Indicator, maintenance reminder (2 driver-selectable reminders), and a range of indicators and warning lamps
- Warranty: 36 months
- Kawasaki Protection Plus: 12 / 24 / 36 / 48 months
Notes
Notes:
2024 Kawasaki Ridge XR HVAC. Now in stock. Destination and applicable taxes extra. Financing available, OAC. Trades welcome, all makes and models.

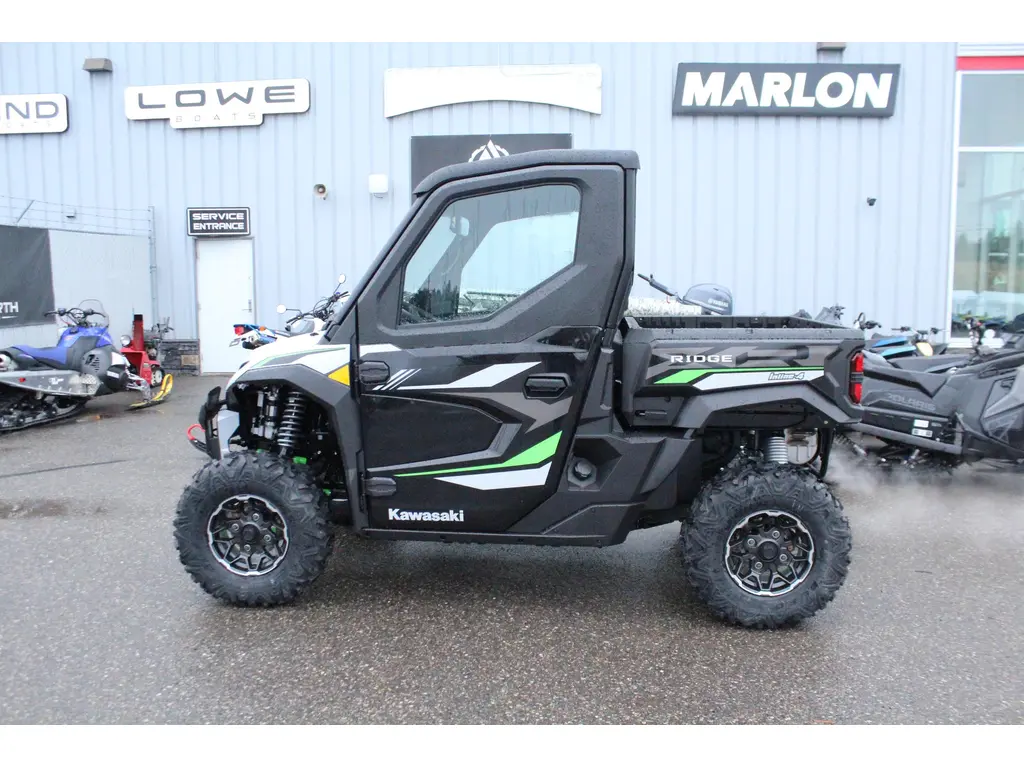

### 2024 Kawasaki Ridge® XR HVAC
The all-new RIDGE XR*¹ side by side sets the new off-road standard with a game-changing, 999cc Kawasaki-built in-line 4-cylinder engine and an optimised chassis, combining to deliver exceptional ride quality. Inside, you’ll experience premium controls and high-grade fit-and-finish details that make for remarkably comfortable recreational riding. Premium off-roading has arrived.
**Features may include:**
**VERSATILE ENGINE FOR WORK AND RECREATION*** OFF-ROAD LIKE NEVER BEFORE
With its all-new litre-class in-line four engine mounted in a sturdy chassis, the RIDGE XR is well-equipped to take on a wide range of conditions, be they on the jobsite or on the trail. Power Modes and on-the-fly selectable drivetrain adjustability enhance the control offered by the high-power, high-torque engine and CVT.
**VERSATILE CHASSIS FOR WORK AND RECREATION*** PURPOSEFUL DESIGN
Complementing its litre-class in-line four engine and sturdy chassis, the RIDGE XR’s long-travel suspension, high ground clearance and a substantial cargo capacity give it the versatility for both work and play.
**PREMIUM COMFORT*** ELEVATE YOUR OUTDOOR EXPERIENCE
The RIDGE XR was designed to offer class-leading comfort—from its highly composed chassis to its roomy, adjustable accommodations, and even its in-line four engine, which offers smooth power, low vibration, and low noise. On select models, a full cab with HVAC offers all-season interior comfort.
**PREMIUM QUALITY*** ENJOY THE RIDE IN STYLE
The RIDGE XR cuts an impressive figure, with automotive-style fit and finish on display both from afar and up close. Both inside and out, the high attention to little details is evident.
**ADDITIONAL*** Factory-standard full cab with heating, ventilation and air conditioning (HVAC)
* All-season interior comfort
* Full doors with powered glass windows
* Continuously Variable Transmission (CVT)
* On-the-fly electrically selectable 4WD & front/rear differential lock
* 14” aluminum wheels and large 30” tires
* Tilting D-shape steering wheel
* Speed-sensitive Electric Power Steering (EPS)
* Storage space (behind seats & inside armrest console)
* Premium backlit dash switches
* Floor lighting
* All-LED exterior lighting including accent lights
